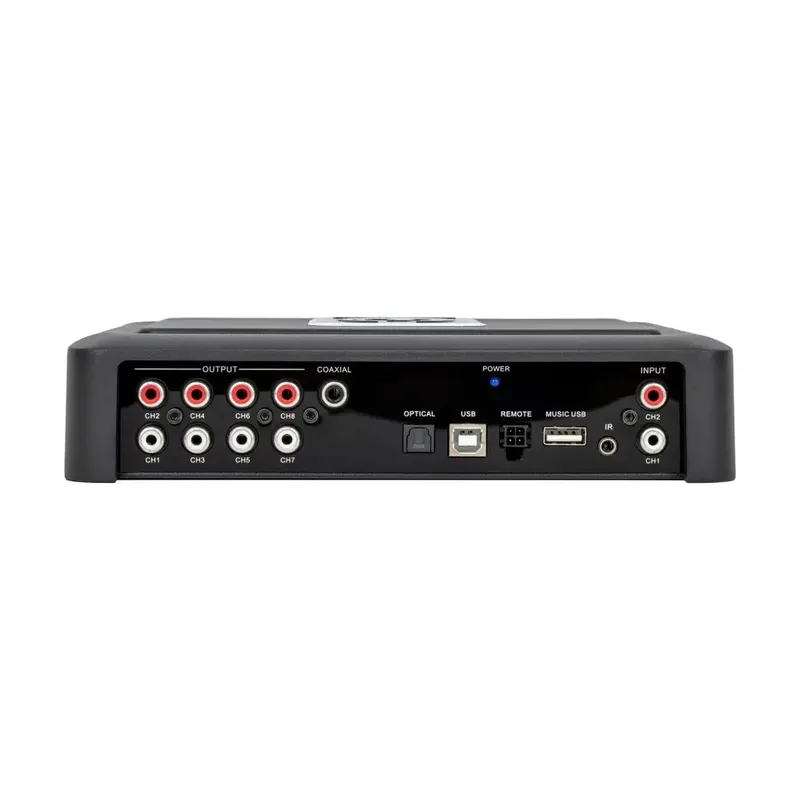

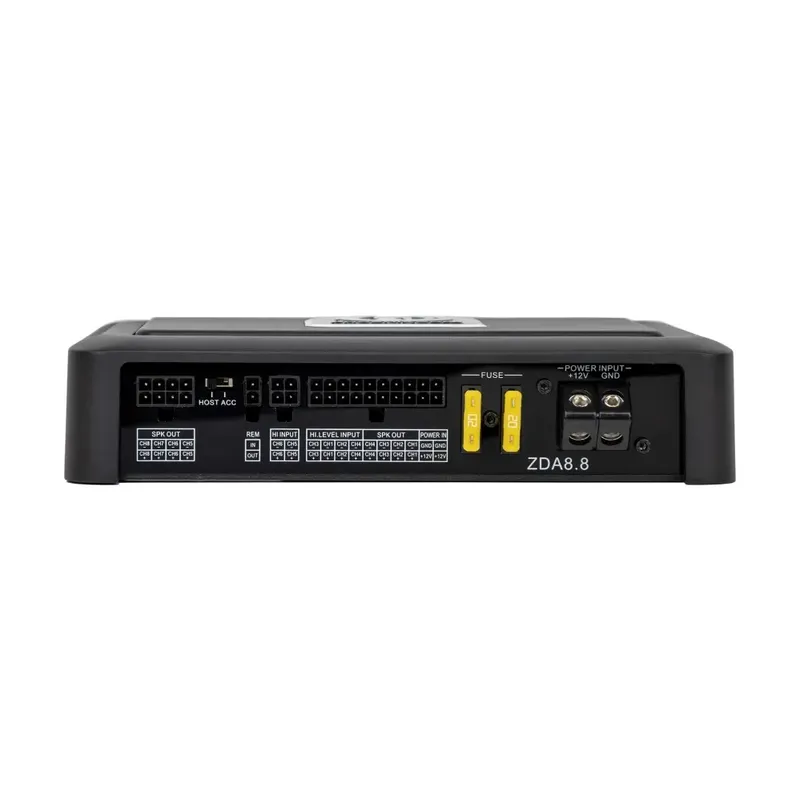

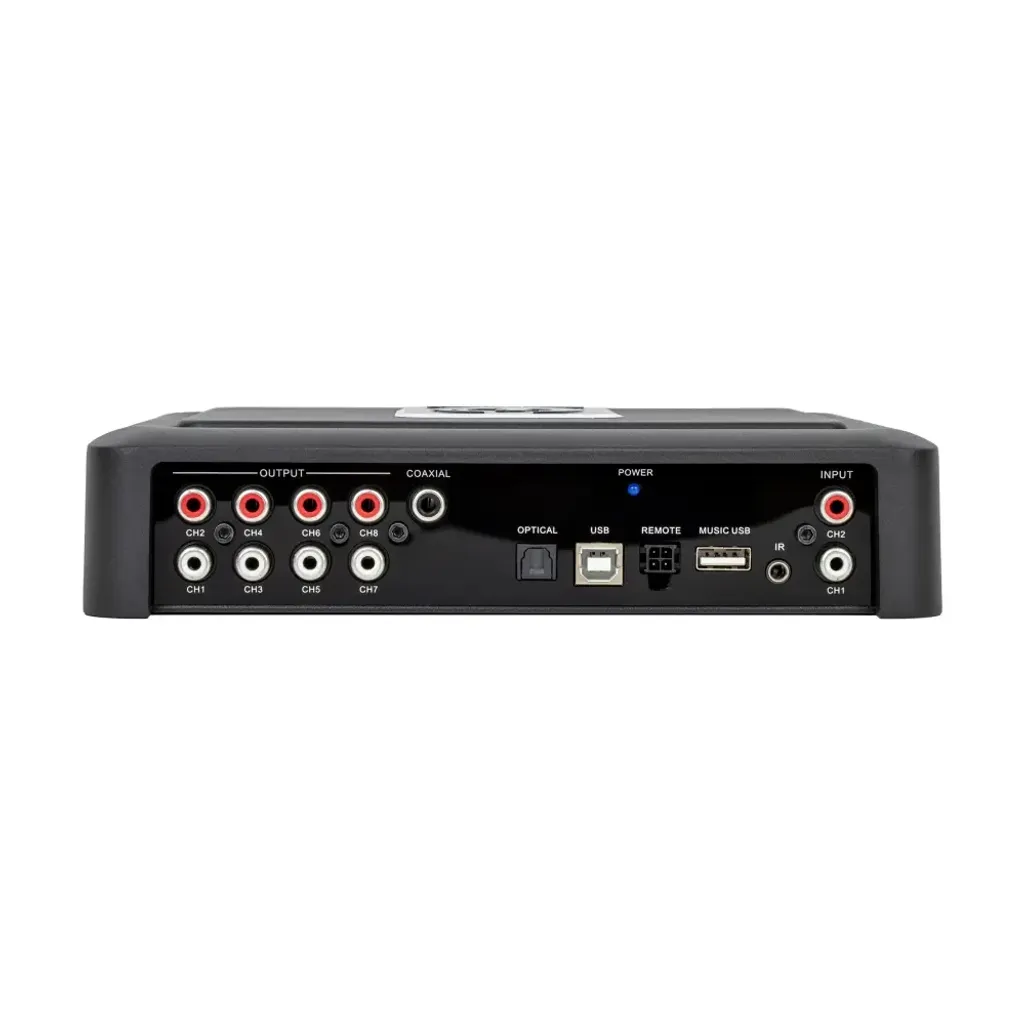

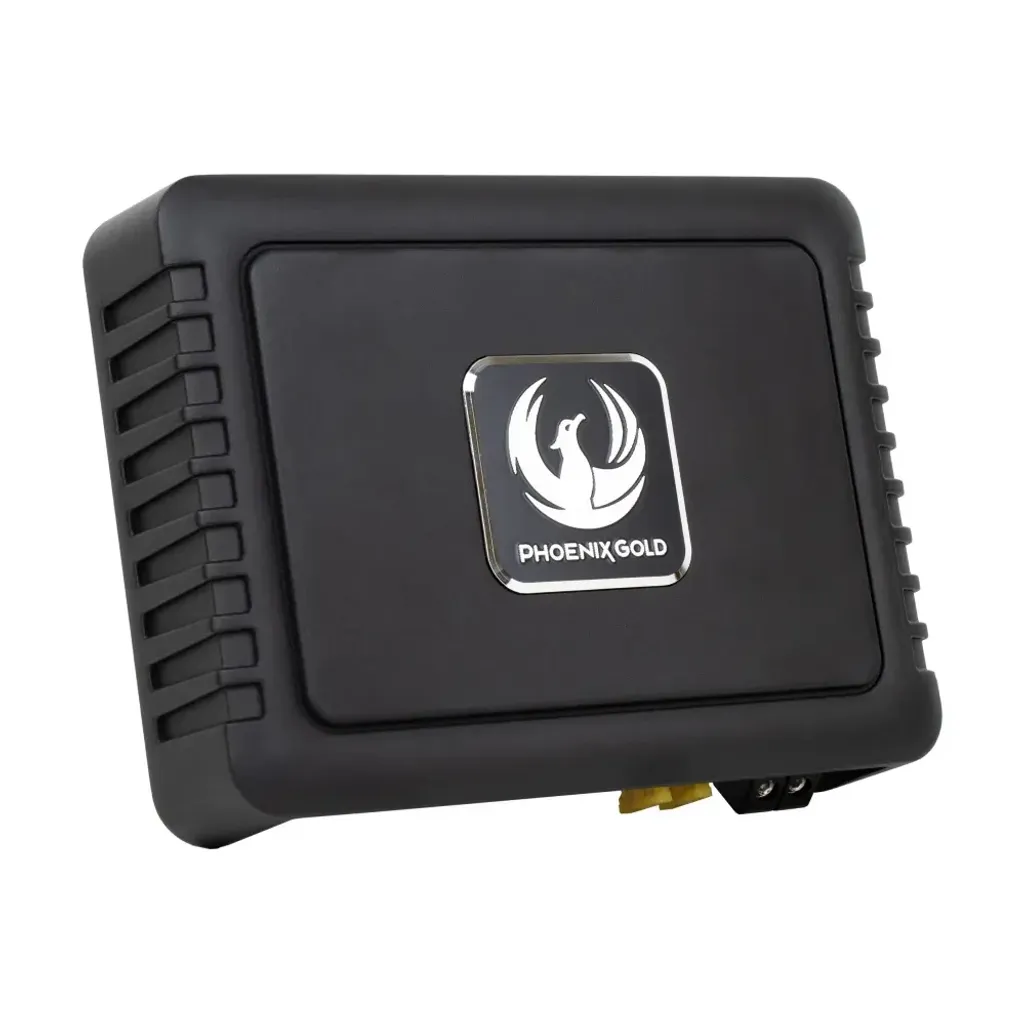

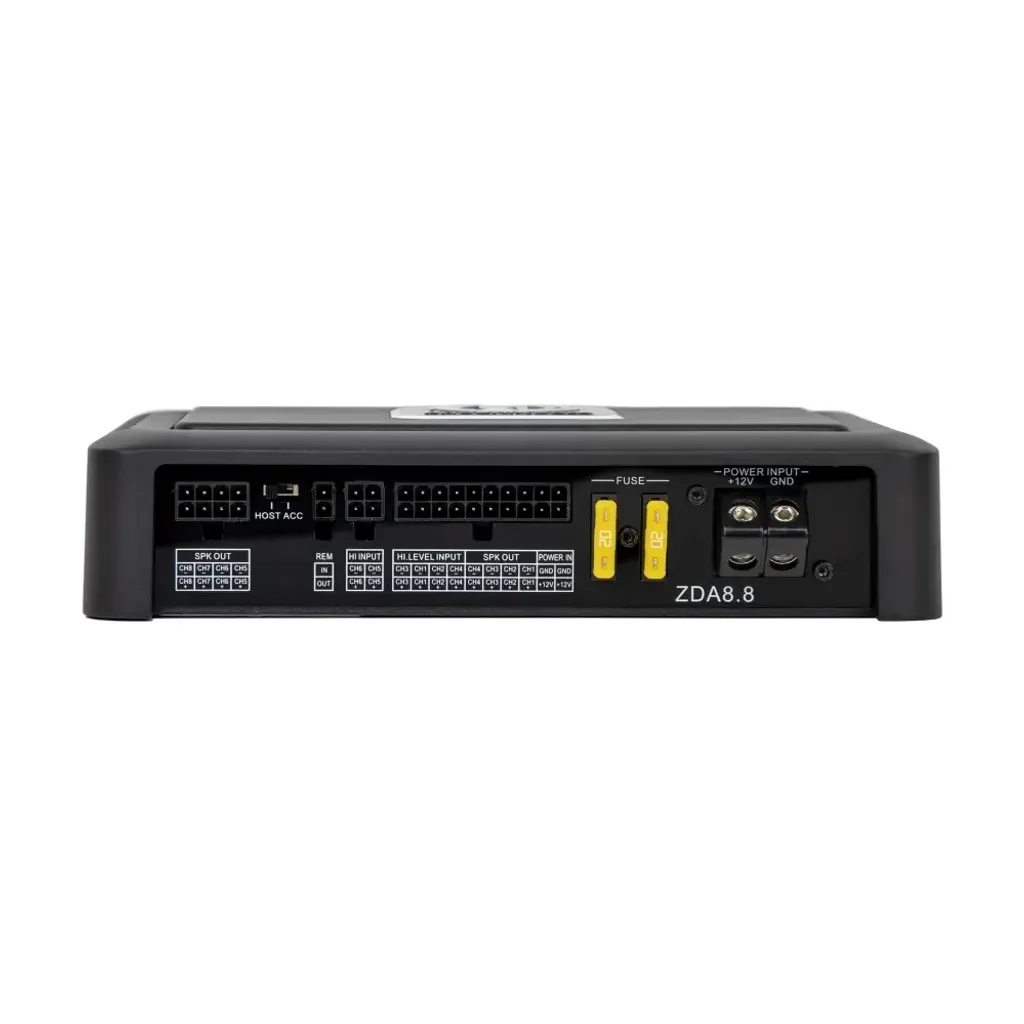

Phoenix Gold ZDA8.8
DSP + Förstärkare 8kanals 8x30W förstärkare & 8ch DSP
Läs mer
Liknande produkter
3 999 kr
/ Styck
3 999 kr
/ Styck
3 995 kr
/ Styck
2 995 kr
/ Styck
3 995 kr
/ Styck
2 490 kr
/ Styck
Beskrivning av Phoenix Gold ZDA8.8
| Product: | ZDA8.8 |
| Type: | DSP Amplifier |
| Amplifier Class: | A/B |
| Amplified Channels: | 8 |
| DSP Channels: | 8 |
| Frequency Response (-3dB): | 15Hz ~ 23kHz |
| MAX Power Rating: | 480W |
| RMS Power Rating (2Ω): | N/A |
| RMS Power Rating (4Ω): | 8 x 30W |
| RCA Voltage Output: | 4V |
| DAC: | Burr Brown PCM1681 |
| DSP Resolution: | 24 Bit |
| Sampling Rate: | 48kHz |
| SNR (Analogue/Digital Input): | -90dB |
| THD: | 0.1% |
| Crosstalk: | -60dB |
| Damping Factor: | 120 |
| High-Level Input: | Yes |
| Auto Turn-On: | Yes |
| Input Sensitivity (High-Level): | 0.2V – 20V |
| Input Sensitivity (Low-Level): | 0.2V – 5V |
| Operating Voltage: | 9V – 16V |
| Start-Stop Compatible: | Yes |
| Idle Current: | 1.5A |
| Current Draw (MAX): | 30A |
| Total Efficiency (4Ω): | 60% |
| Power Terminal: | 10mm² |
| Remote (Optional): | ZDAWCT |
| Low-Level Outputs (RCA): | 8 |
| Analogue Inputs: | 6 x High-Level / 2 x Low-Level |
| Digital Inputs: | Bluetooth / Coaxial / USB / SPDIF |
| Remote Input: | Yes |
| Remote Output: | Yes |
| PC Connection Input: | USB-B |
| APP Control (Coming Soon): | Yes |
